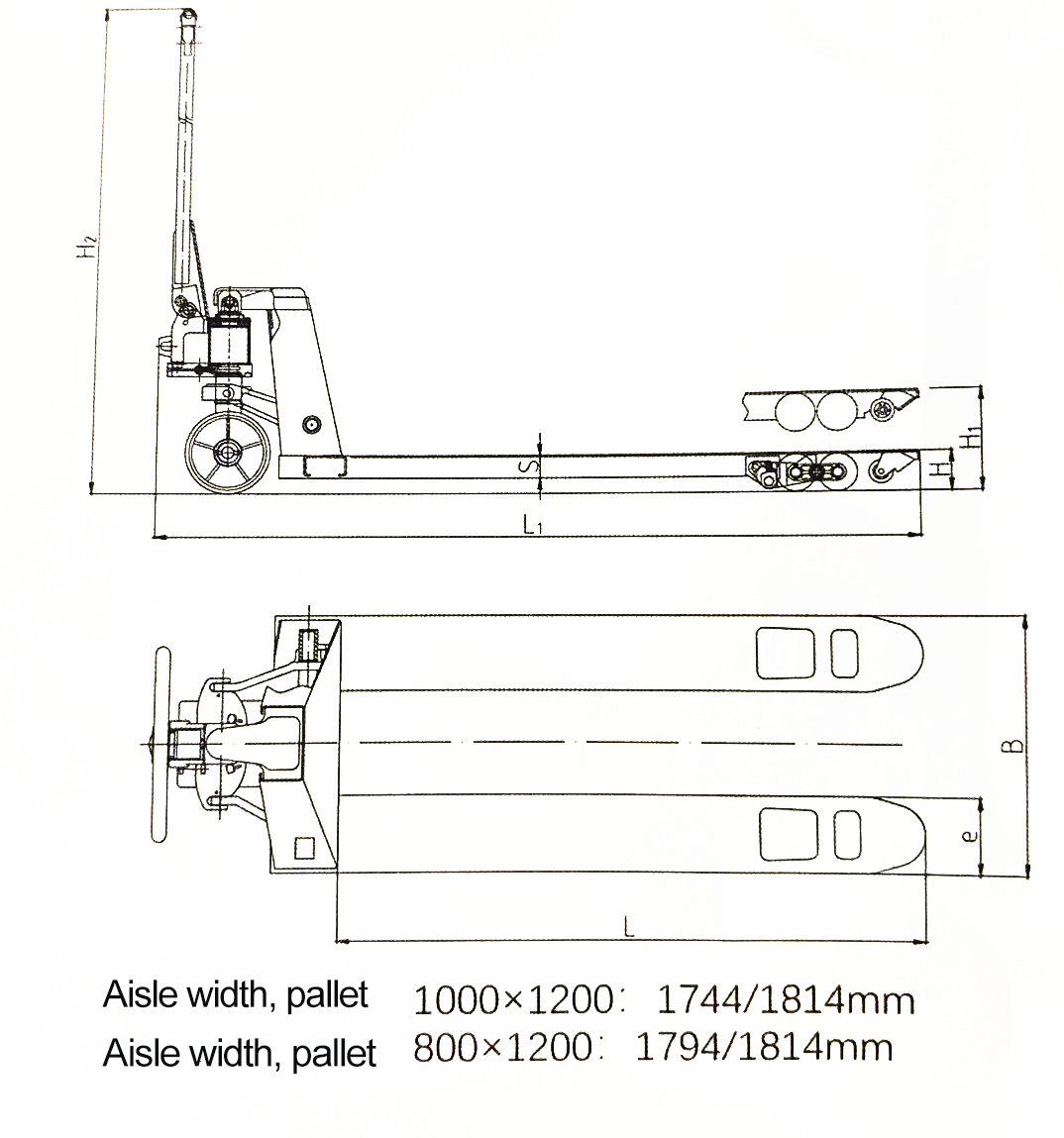

Rated load | KG | 2000 | 2000 | 2500 | 3000 |
Fork min. height | H (mm) | 52/65 | 75/85 | 75/85 | 75/85 |
Max. height after the fork is lifted | H1 (mm) | 140/160 | 190/200 | 190/200 | 190/200 |
Max. lifting stroke | mm | 88/95 | ≥110 | ≥110 | ≥110 |
Fork outer width | B(mm) | 520/540/685 | 520/540/685 | 520/540/685 | 520/540/685 |
Fork inner width | mm | 200/220/365 | 200/220/365 | 200/220/365 | 200/220/365 |
Fork working length | L(mm) | 915/1100/1150/1220 | 915/1100/1150/1220 | 915/1100/1150/1220 | 915/1100/1150/1220 |
Single fork width | e(mm) | 160 | 160 | 160 | 160 |
Fork thickness | s(mm) | 37 | 50 | 50 | 50 |
Vehicle length | L1(mm) | 1194-1614 | 1194-1614 | 1194-1614 | 1194-1614 |
Vehicle width | mm | 520/540/685 | 520/540/685 | 520/540/685 | 520/540/685 |
Vehicle height | H2(mm) | 1225 | 1245 | 1245 | 1245 |
Oil cylinder lifting rod diameter | mm | Φ35 | Φ35 | Φ35 | Φ35 |
Load bearing wheel size | mm | Φ50×93/Φ60×93 | Φ74×93/Φ80×93 | Φ74×93/Φ80×93 | Φ74×93/Φ80×93 |
Bearing double wheel size | mm | Φ50×70/Φ64×70 | Φ74×70/Φ80×70 | Φ74×70/Φ80×70 | Φ74×70/Φ80×70 |
Steering wheel size | mm | Φ160×50/Φ180×50 | Φ180×50 | Φ180×50 | Φ180×50 |
Min.turning radius | mm | 1120/1300/1350/1450 | 1120/1300/1350/1450 | 1120/1300/1350/1450 | 1120/1300/1350/1450 |
Wheel material | Polyurethane/Nylon/Rubber | Polyurethane/Nylon/Rubber | Polyurethane/Nylon/Rubber | Polyurethane/Nylon/Rubber | |
Weight | KG | 62-74 | 63-75 | 68-81 | 72-85 |
